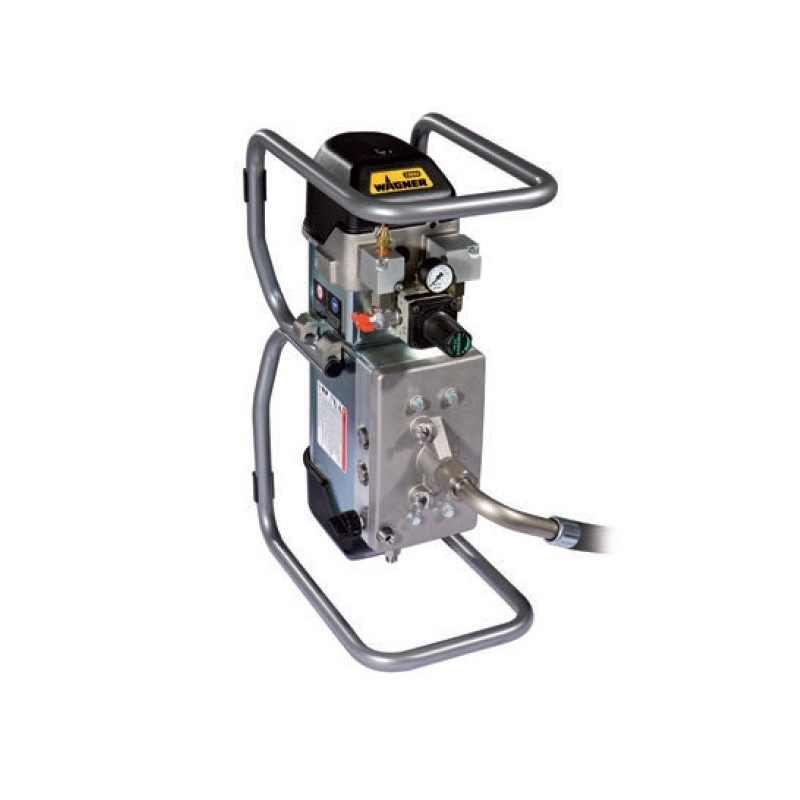

High pressure diaphragm pump Wagner Cobra 40-25

Reference: 2329525 Print

Cobra 40-25 is an exclusive, high-pressure, double-diaphragm pump, suitable for both airless and AirCoat painting up to 250 bar.

Set
At stores prices may vary
Price:
€6,058.71
pcs / with VAT
Quantity
In manufacturer warehouse
Delivery: Ask
Till free delivery you need
€180.00

Product information



Cobra 40 -25 - an exclusive high-pressure, double-diaphragm pump, suitable for both airless and AirCoat painting up to 250 bar pressure.

Cobra is the first air driven pump without gaskets. This pump is suitable for working with various reactive materials (UV, PU, Isocyanates, PE, etc.) and abrasive materials, due to its sealed construction, minimal internal friction and resistance.

It is characterized by extremely low pulsation, so the paint is sprayed evenly, and the painted surface is of a particularly high quality.

The very small internal volume of the pump allows for quick color changes with a small amount of solvent, and the amount of paint waste during color changes is reduced to a minimum.

Cobra 40-25 is used in systems that require a larger amount of material to be fed (up to 5 l/min). Most often, these are furniture production lines with several nozzles or when large-diameter nozzles are used.

Ideal for 2K systems for dosing of hardener or base when a large flow of feed material is required.

Advantages:
• Quick return on investment
• High reliability
• Wide application

Areas of application:
• Wood and furniture industry
• In window and door manufacturing companies
• In the production of agricultural, construction and other machines
• Metal industry
• For dyeing leather products

Available materials:
• Paints based on solvents and water
• Wood finishing materials
• Moisture-sensitive materials, isocyanates
• Shear-sensitive materials
• UV curing materials
• Temperature-sensitive materials (e.g. acrylics)
• Zinc-based primers

Features

Operating pressure 250 bar
Species Cobra 40-25
Purpose Paint feeding
Pump spraying technology Diaphragm pump
Pump type High pressure pump
Air inlet pressure 2,5 - 6,3 bar
Material temperature 10 - 80 °C
Ambient temperature 10 - 60 °C
Max. material pressure 20 bar
Material connection M-M 36x2
Volumetric flow per double stroke 25 cm³/DS
Max. stroke rate 200 DS/min
Material outlet M-G 3/8‘‘
Sound level at 6 bar air pressure 76 dB
Connection (air intake) F-G 1/2“

Sertificates

Manufacturer

For decades, the "Wagner" group has been known worldwide as a supplier of innovative painting equipment components.

For industry, "Wagner" offer technologically advanced equipment and systems for the application of fluid coatings, powder coatings and paint to surfaces. Contractors use its reliable and economical tools with a range of technologies including airless to apply paint, coatings and plaster. For do-it-yourself enthusiasts, "Wagner" has developed a wide range of user-friendly home-improvement products.

Many companies working in the wood, metal, plastic and automotive industries have tested and installed "Wagner" equipment in their production.

In order to best respond to the needs of "Wagner" customers, company portfolio of products is organized into two divisions. The Decorative Finishing division develops tools that are tailored specifically to the needs of contractors and "do-it-yourself" enthusiasts, while the "Industrial Solutions" division manufactures industrial surface coating products and systems for a range of industry sectors.

"Wagner" provides components and solutions for the manual and automatic application of liquid, solvent and water-based coatings. Company focus is on reliability, durability and high, process-safe coating quality of surfaces.
